USING VHDL BASED MODELING, SYNTHESIS, AND SIMULATION IN AN INTRODUCTORY COMPUTER ARCHITECTURE LABORATORY


JAMES 0. HAMBLEN

School of Electrical and Computer Engineering

Georgia Institute of Technology

Atlanta, Georgia 30332-0250

USA


Abstract -. In many existing curricula, laboratories, and textbooks there is a notable lack of recent research advances in CAD tools and rapid prototyping using logic synthesis tools. Many electrical and computer engineering career paths in both industrial research and development as well as academic research require competence in these areas. In general, this exclusion from undergraduate curricula results in the requirement for training beyond the undergraduate program before a graduate becomes productive. This paper describes a new two quarter introductory computer architecture course and laboratory sequence in our undergraduate Computer Engineering curriculum. CAD tools that support VHDL modeling, synthesis, and gate level timing simulations are used by students to design a prototype 32-bit RISC processor.





1 INTRODUCTION

The rapid evolution of the computing industry challenges academic curricula to keep pace in providing students with a modern education. Their experiences in school should provide them with the tools to be productive as well as ability to challenge the existing methodologies in discovering more efficient techniques. Traditionally, undergraduate computer architecture laboratory courses have used special purpose software simulators to aid in the design and modeling of a simple computer. This model of a simple computer is used to explain and reinforce many of the new ideas presented in lectures. In recent years, many such courses have been based on behavioral or RTL level simulations only. A methodology is described using VHDL based modeling that allows for top down hierarchical design, synthesis, and a full gate level timing simulation of a 32-bit RISC processor by using advanced CAD tools.

This paper describes our experiences in developing a two quarter laboratory course to accompany a computer architecture course sequence for computer and electrical engineering majors. Our goal was to enable students to design and develop a realistic computer system simulation using many of the recent advances in CAD tools for logic synthesis and simulation. One of these recent developments, VHDL, Very High Speed Integrated Circuit Hardware Description Language, is now widely used to model and simulate digital circuits. VHDL has a syntax similar to Pascal or ADA. VHDL Synthesis tools are available which automatically translate a high level VHDL model into a gate level digital logic schematic. Increasing the level of abstraction using automatic synthesis tools produces substantial reductions in development time for complex digital circuits.

Computer Architecture I and II, Computer Engineering 2510 and 3510, are required four hour, one quarter, courses taken in sequence by computer and electrical engineering students at the Georgia Institute of Technology. The goals of this course sequence are to introduce students to assembly language programming, computer arithmetic, computer architecture and to provide an introduction to modern digital CAD tools. At the end of the sequence, students should have a basic understanding of computer operations from the high level language programming level to the gate level implementation of the computer system. Students are already familiar with digital design, computer programming in a high level language, Field Programmable Gate Arrays, and VHDL based modeling and simulation of simple digital logic circuits from prerequisite courses. Introduction of modern VHDL based CAD tools into the curriculum allows more realistic evaluation through system implementation and simulation than has been previously possible. Example projects, student feedback, and results from the first two offerings of this sequence are included in this paper.

2 COMPUTER ARCHITECTURE I AND II LABORATORY

Enrollment in Computer Architecture I and II is approximately 350 students per year. Lectures are held three hours a week and three hours of laboratory work per week are required. An overview of the complete design process developed for this laboratory and the associated CAD tools are shown in Fig. 1. These tools were collected from a variety of sources and many are available free of charge to educational users via the Internet.

The lecture and laboratory outline for Computer Architecture I and II is shown in Table 1. The MIPS 32-bit RISC assembly language, integer and floating point computer arithmetic, and several hardware implementations of the MIPS processor are contained in the course textbook [1]. In Computer Engineering 2510, Computer Architecture I, students complete three assembly language programming laboratory assignments using SPIM, a MIPS assembler and instruction level simulator. SPIM is a public domain program available free via anonymous ftp for UNIX, PC and MAC platforms [1,2,3]. The first two assembly language program assignments demonstrate integer operations, control structures, stack operations, and subroutine linkage.

In the second assembly language program, students compare their hand written assembly code to the code generated by a C compiler that has compiled a program to perform the same operation. Lcc, a public domain retargetable C compiler, available free for UNIX workstations and PCs, is used for this step [4]. One of the target machines already supported by this compiler is the MIPS. MIPS assembly language source files generated by the compiler are then used by students to demonstrate compiler code generation.

In the final assembly language program, students implement a floating point function such as square root. The SPIM MIPS simulator supports floating point instructions and operations. IEEE Standard 754 floating point format is used in the MIPS processor [1,2,3].

After completing MIPS assembly language laboratory assignments, students have two laboratory assignments in which they modify a VHDL model of a MIPS RISC processor. A synthesizable VHDL model of the MIPS was developed at Georgia Tech for use in this laboratory. It should be noted that existing synthesis tools impose a number of restrictions upon the VHDL source code and require the use of a subset of standard VHDL.

In addition to a Pascal or ADA based syntax, VHDL includes several extensions which make it useful for modeling of digital circuits [5]. VHDL processes and modules execute in parallel. The WAIT statement suspends a process until the specified condition is true. A WAIT statement which waits for the clock signal to change is used to model and synthesize latches and flip-flops. Another VHDL extension is the AFTER keyword. The keyword, AFTER, followed by a time delay can be used to model the physical time delays present in digital circuits. These features permit VHDL to model the parallel operation of digital hardware even including physical time delays, if so desired. Behavioral VHDL based modeling of digital systems has been in use for several years. VHDL based logic synthesis is a newer development.

A simple VHDL synthesis example using the MIPS control unit is shown in Figs. 2 and 3. The VHDL source code is shown in Fig. 2 and the schematic automatically generated by the synthesis tool is shown in Fig. 3. The input to this module is the 6-bit instruction opcode, OP(5-0). The language support for bit vectors or arrays of bits, such as OP, greatly simplifies coding of the VHDL model. All busses and register values use the bit vector data type. It is possible to change the entire value of a bit vector with one assignment statement or to access smaller bit fields when needed. The outputs of this VHDL module are the various control signals used in the processor. The synthesis tool automatically performs logic minimization and multi-level logic synthesis. As an example, many of the intermediate level gate outputs are shared between the various output circuits shown in the schematic in Fig. 3. The original VHDL code had logic equations with six inputs for the opcode bits. More than two levels of gating are required for implementation, since the logic technology used for synthesis allows a maximum of four inputs per gate.

In the two VHDL based laboratory assignments, new instructions and features are added to the VHDL model of the MIPS processor. Detailed block diagrams of the MIPS processor architecture are presented in the course textbook [1]. Changes and additions to the block diagram are made as new instructions are added to the processor. Students determine the hardware changes or additions needed and modify the appropriate source code in the MIPS VHDL model. Typical assignments have included the addition of unconditional branch instructions and unsigned add operations. The entire design is resynthesized to a gate level schematic, and a gate level timing simulation running a short machine language test program is used to verify correct operation of the new instructions. Tutorial and batch command files are included to make the process simple enough for first time users of the CAD tools.

Student's VHDL models are automatically synthesized into gate level logic and simulated using a popular commercial CAD tool, Viewlogic. Several other VHDL based CAD synthesis tools could also be used such as Synopsys[6], Mentor, or Cadence; however, these are available only for UNIX platforms. Viewlogic's VHDL synthesis and simulation tools are currently available for UNIX or PC platforms at a substantial educational discount. For PC based Viewlogic, an 80486 based or faster PC with at least 16 megabytes of memory and 100 megabytes of available disk space is recommended. We currently have forty such machines available for student use in this laboratory. In addition to class handouts, several VHDL references are provided and a full set of CD-ROM on-line documentation for the VHDL CAD tool is available via a shared network drive [7,8]. The Xlilinx 4000 ASIC, Application Specific Integrated Circuit, technology library is used for gate level synthesis and timing information [8]. With minor changes it is possible to resynthesize using other ASIC technologies. Gate count and timing information is automatically reported by the synthesis tool.

The VHDL synthesis tool has predefined VHDL based implementations of adders, subtractors, and flip-flops making the design process easier. Hardware for addition, subtraction, and register storage operations can be automatically generated by function calls in the VHDL code. Unfortunately, with current VHDL synthesis tools there is no universal industry standard for these functions. Since there is no VHDL synthesis standard these portions of the VHDL model would need to be modified if a different VHDL synthesis CAD tool is used.

It is possible for students to examine the synthesized schematics and to experiment with different hardware design tradeoffs such as time and area. When running simulations, a timing diagram can be produced and it is also possible to back annotate the schematics with simulation values to aid in debugging.

A full 32-bit version of the MIPS requires several hours to synthesize on the PC platform. A smaller version with an 8-bit data path with full 32-bit instructions and control was developed to permit the design to synthesize and simulate quickly for student laboratory assignments. This version has minimal VHDL source level modifications from the 32-bit version. Changes are limited to the bit vector array size declarations for variables and signals in the data path. The smaller model requires machine language test programs that use 8-bit integer values. Since the hardware test programs in the textbook are just a few instructions long and relatively simple, this has not affected the pedagogical value of the MIPS VHDL model.

Machine language test programs can be hand assembled, assembled using the SPIM assembler, or even produced using the C compiler. This machine language file is then read into the VHDL model's memory with a read command or hardcoded into a VHDL synthesized ROM used to simulate instruction memory. On current generation PCs, the entire synthesis process for the smaller model requires several minutes of computer time. Approximately 3,500 gates are used to implement the basic MIPS VHDL model. After student modifications that add new features, the improved pipelined MIPS processor uses approximately 6,000 gates.

In Computer Engineering 3510, Computer Architecture II, students study pipelining techniques, caches, virtual memory, and I/O hardware. In laboratory assignments, students modify the synthesizable VHDL model to create an improved MIPS RISC processor with pipelining. In the first laboratory assignment, students pipeline the existing MIPS VHDL model. The VHDL model contains separate modules for each of the five MIPS pipeline stages making the student pipelining process much easier. In this assignment, students add the pipeline registers to each stage or module and modify the control unit. A top-level VHDL structural model is used to connect the five stages together. This structure generates two levels of hierarchy in the design. Breaking up the model into different pipeline stages makes the model much easier to understand and to synthesize. The textbook contains detailed block diagrams of the pipelined MIPS processor[1]. Instructions are traced one clock cycle at a time as they move through the pipeline stages and the value of all busses and control signals are shown in a detailed set of diagrams. Short machine language test programs identical to those presented in the course textbook are run in the simulator to verify correct operation. Using the simulation output, a timing diagram with bus values indicated in hexadecimal, students can check the computer's operation against the textbook's diagrams to verify correct operation. On the PC platform, the VHDL gate level timing simulator can execute the MIPS test programs in a few seconds.

In the second laboratory assignment, automatic pipeline stalling using a hazard detection unit is added to the pipelined MIPS VHDL model. The textbook modifies the control unit to detect a data hazard between instructions in the pipeline and to stall or wait a clock cycle. An example data hazard would be an instruction in the pipeline that writes a register that is then read by the instruction that immediately follows it. The pipelined register write occurs after the read operation for the next instruction and the incorrect register data value would be used. This problem is solved by stalling and later by forwarding. These problems are carefully avoided by the MIPS machine language test programs until they are discussed in the textbook and corrected by adding additional hardware.

In the third laboratory assignment, forwarding is added between the pipeline stages to reduce the number of stalls. As outlined in the textbook, two forwarding multiplexers are added to the ALU inputs along with a more complex control unit that selects the appropriate input when it detects a data hazard. In the case of a register data hazard, the new value of the register is supplied to the ALU by the forwarding multiplexer before it is written back to the register file.

In the fourth assignment, branch flushing is added to the pipelined MIPS VHDL model. When a branch is taken several instructions after the branch are already in the pipeline and they must be automatically cleared out of the pipeline or flushed. The control unit and pipeline registers are modified to detect a branch flush operation and to clear the appropriate pipeline registers to avoid executing unwanted instructions already in the pipeline.

In the final assignment, additional features such as a cache, exception handling hardware, or a different branch instruction scheme are added to the pipelined MIPS VHDL model. On the MIPS processor exceptions, such as overflow, save the current PC in a special register and jump to a trap address. In each laboratory assignment, complete synthesis of the design to gate level, followed by a full gate level timing simulation is used to execute short machine language test programs.

Over the two quarter sequence, most students have encountered timing problems present in their VHDL models that cause errors in the VHDL gate level timing simulation. In every case, it was a real timing problem traced back to VHDL coding errors. They were able to detect and diagnose the problem using the simulation, modify the VHDL model, resynthesize, and eliminate the timing problems. Problems included uninitialized values in flip-flops, combinatorial loops, gating signals with the clock, and logic hazards on critical write control lines. These real world problems familiar to most experienced digital designers are not detected by most RTL or VHDL behavioral simulations.

Actual VLSI chip designs with higher clock rates could be automatically produced using the VHDL synthesis generated schematic or netlist as the input to a silicon compiler [9]. The Lager silicon compiler automatically generates a standard cell layout. Interfaces to this tool have been developed for synthesized designs using Viewlogic VHDL. This tool is available upon request for UNIX platforms free of charge to educational users. In theory, a MIPS VLSI processor chip could then be fabricated using a VLSI fabrication service. The actual fabrication process would be costly and would add a substantial delay due to VLSI fabrication times. Actual fabrication of the chip would make design turnarounds difficult, if not impossible, in a one quarter course. It would also be possible to fit the entire MIPS VHDL synthesized design into a large Xilinx FPGA chip such as a 4005 or onto several automatically interconnected Xilinx FPGA chips in a hardware emulation device [10,11]. This option is being investigated for use in a more advanced computer architecture laboratory design course, Computer Engineering 4500 [12]. In future offerings of Computer Architecture II, for the final laboratory project, MIPS processor designs will be compiled into a VLSI standard cell layout and then simulated to examine the resulting timing and area information.

3 CONCLUSIONS

VHDL synthesis and simulation provides a new paradigm for computer architecture classes. With current generation CAD tools it is possible for undergraduate students to design and develop working simulations of complex computer systems as part of their laboratory work. The equipment and CAD tools required are available to schools at prices comparable to existing instructional laboratories. A copy of the MIPS VHDL synthesis model is available from the author upon request or on the Internet at http://www.ee.gatech.edu or ftp.ee.gatech.edu. Student feedback has encouraged the continued use of the new VHDL based CAD tools. Students gain a sense of accomplishment and work harder on the computer design projects when given the opportunity to use advanced general purpose CAD tools with realistic timing and gate level simulations rather than a special purpose computer simulation program. Rapid prototyping of the design using synthesis and simulation in the laboratory demonstrates and unifies many of the ideas taught in numerous undergraduate classes and serves as an ideal laboratory course for introductory computer architecture students.

4 ACKNOWLEDGMENTS

The authors would like to thank the many students and teaching assistants who aided in the development of this new laboratory. Donations of Personal Computers from Intel, and CAD tools from Viewlogic and Xilinx made the development of this new laboratory possible. A grant from the Georgia Tech Foundation enabled the purchase of additional software and equipment needed for the laboratory.

REFERENCES

[1] Patterson, D. and Hennessy, J., Computer Organization & Design The Hardware/Software Interface, San Mateo, CA: Morgan Kaufmann, 1994.

[2] Larus, J., Assemblers, Linkers, and the SPIM Simulator, University of Wisconsin, 1991. Reprinted in [1], manual and SPIM software available via ftp from ftp.cs.wisc.edu.

[3] Heinrich, J., MIPS R4000 User's Manual, Englewood Cliffs,N.J.: Prentice Hall,. 1993.

[4] Fraser, C.and Hanson, D., A Retargetable C Compiler: Design and Implementation, Redwood City, CA: Benjamin/Cummings Publishing, 1995. Information and compiler source code available from http://www.cs.princeton.edu/software/lcc

[5] Ashenden, P., The VHDL Cookbook, University of Adelaide, 1990. Available via ftp from bears.ece.ucsb.edu.

[6] Kurup, P., and Abbasi, T., Logic Synthesis Using Synopsys, Boston, Mass: Kulwer Academic Publishers, 1995. Synopsys information available from

http://www.synopsys.com

[7] VHDL Reference Manual for Synthesis, Marlboro Massachusetts: Viewlogic Systems, 1992. Viewlogic information available from http://www.viewlogic.com

[8] XACT Viewlogic Interface User Guide, San Jose, CA: Xilinx Corporation, 1994.

Xilinx information available from http://www.xilinx.com

[9] Brodersen, R.W., editor., Anatomy of a Silicon Compiler, Boston, Mass:

Kulwer Academic Publishers , 1992. Lager information available from

http://infopad.EECS.berkeley.edu/research/tools/lager

[10] Owen, H., Khan, U., and Hughes, J., "FPGA Based Emulator Architectures", More FPGAs (Will Moore and Wayne Luk, Eds.), Abbingondon, England: Abbingondon EE & CS Books, pp. 399-409 (1994). Emulator Information available from http://www.zycad.com and http://www.quickturn.com


[11] Khan, U., Owen, H., and Hughes, J., "FPGA Architectures for ASIC Hardware Emulators," Proceedings of the Sixth Annual IEEE International ASIC '93, New York, pp. 336-340, October 1993.

[12] Hamblen, J., Owen, H. L., and Yalamanchili, S., "Introduction of Rapid Systems Prototyping into Undergraduate Computer Engineering Curricula," Proceedings of the Twenty Fifth Annual ASEE Frontiers in Education Conference, Atlanta, GA., November 1995. Available from http://fre.www.ecn.purdue.edu/fre/asee/fie95


TABLE 1 Outline of Lecture and Laboratory Topics

WeekComputer Architecture I

Laboratory Assignment

Computer Architecture I

Lecture Topic

1SPIM tutorialMIPS RISC architecture
2First assembly lang. program MIPS instruction Set
3"SPIM assembly language
4Second assembly lang. program Stacks and subroutines
5MIPS C compilerInteger computer arithmetic
6MIPS floating point program Floating point arithmetic
7VHDL CAD tool tutorial Overview of VHDL
8VHDL synthesis and simulation running a new test program MIPS processor hardware implementation and VHDL model
9VHDL synthesis and simulation

adding a new instruction

Modifying hardware and VHDL to add new instructions and features
10"Alternative microcoded MIPS
WeekComputer Architecture II

Laboratory Assignment

Computer Architecture II

Lecture Topic

1VHDL CAD tool tutorial Overview of pipelining
2Pipelining the MIPS design Pipelining the MIPS hardware
3" Pipeline control problems
4Adding a hazard unit to the MIPS MIPS hazard detection hardware
5"MIPS forwarding unit
6Adding forwarding to the MIPS "
7"MIPS branch flushing
8Add branch flushing to the MIPS I/O devices and busses
9"Caches and virtual memory
10Compile MIPS chip design Introduction to parallel computers





-- control module (model of MIPS control module)
library IEEE;
use IEEE.std_logic_1164.all;
library synth;
use synth.vhdlsynth.ALL;
entity control is
port( signal Op : in std_logic_vector(5 downto 0);
signal RegDst : out std_logic;
signal ALUSrc : out std_logic;
signal MemtoReg : out std_logic;
signal RegWrite : out std_logic;
signal MemRead : out std_logic;
signal MemWrite : out std_logic; signal Branch : out std_logic;
signal ALUop0 : out std_logic;
signal ALUop1 : out std_logic);
end control;
architecture behaviour of control is
signal Rformat, Lw, Sw, Beq : std_logic;
begin -- behaviour of MIPS control
Rformat <= ((NOT Op(5)) AND (NOT Op(4)) AND (NOT Op(3)) AND (NOT Op(2)) AND (NOT Op(1)) AND (NOT Op(0)));
Lw <= (Op(5)) AND (NOT Op(4)) AND (NOT Op(3)) AND (NOT Op(2)) AND (Op(1)) AND (Op(0));
Sw <= (Op(5)) AND (NOT Op(4)) AND (Op(3)) AND (NOT Op(2)) AND (Op(1)) AND (Op(0));
Beq <= (NOT Op(5)) AND (NOT Op(4)) AND (NOT Op(3)) AND
(Op(2)) AND (NOT Op(1)) AND (NOT Op(0));
RegDst <= Rformat;
ALUSrc <= Lw or Sw;
MemtoReg <= Lw ;
RegWrite <= Rformat or Lw;
MemRead <= Lw ;
MemWrite <= Sw ;
Branch <= Beq ;
ALUOp1 <= Rformat ;
ALUOp0 <= Beq ;
end behaviour;

FIG. 2 VHDL Source Code for MIPS Control Unit.

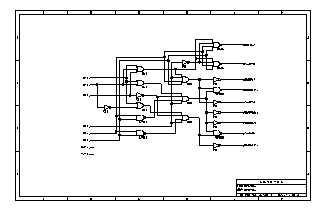

FIG. 3 Control Unit Schematic Produced by VHDL Synthesis
